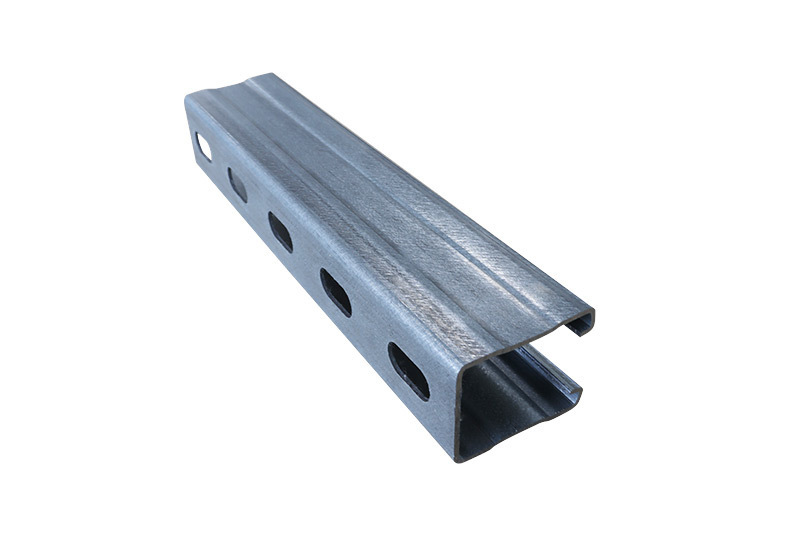

C-type Steel Mount

keyword：Ground Mount

Description

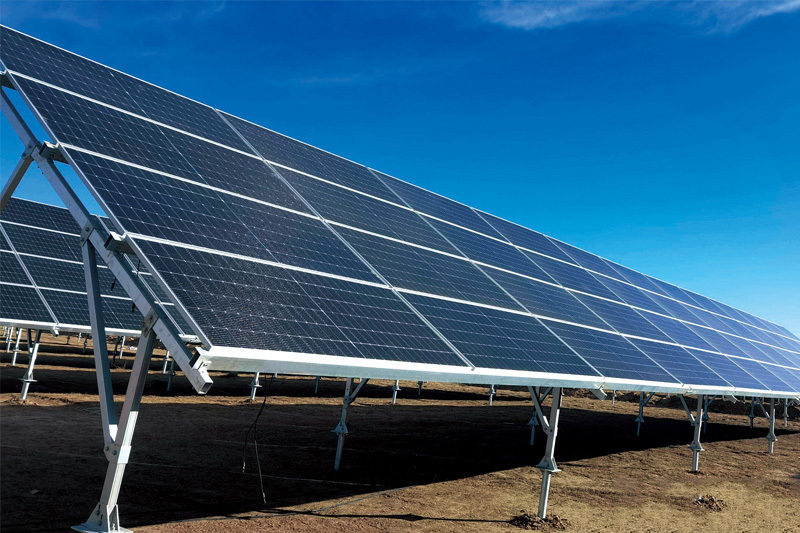

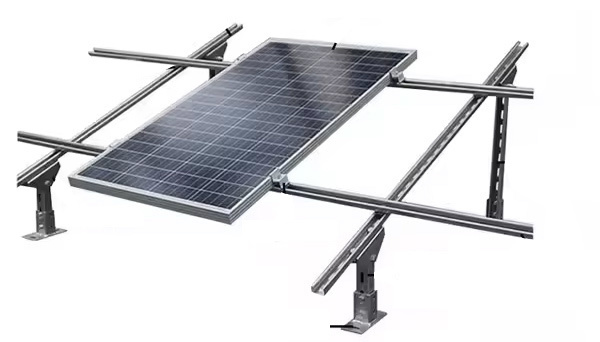

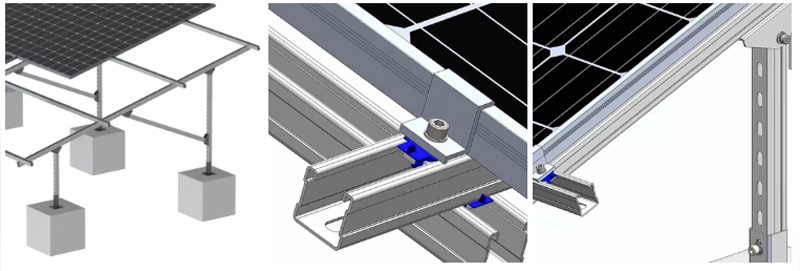

Solar ground mounting system is manufactured in zinc-mg-aluminum steel plates and can be used in a variety of conditions using concrete foundations and ground screws for different panel arrays. Using zinc magnesium aluminum steel structure, this solar mount type has a huge market advantage.

1. 100% high strength zinc magnesium aluminum steel plate, good corrosion resistance, but also automatic repair.
2. High competitiveness on material cost.
3. Easy and fast installation with unique design.
4. Good processing performance, environmental protection and long service life.
5. The coating weight is less, and the simplified process eliminates the hot dip plating after forming.

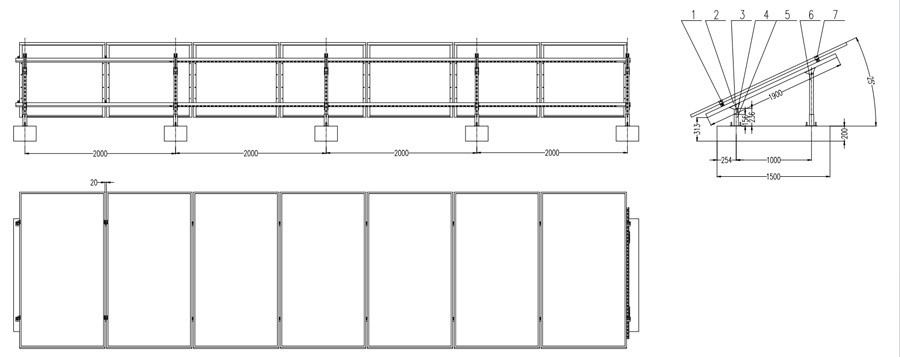

Fixed support 1PX25 Installation diagram - Model

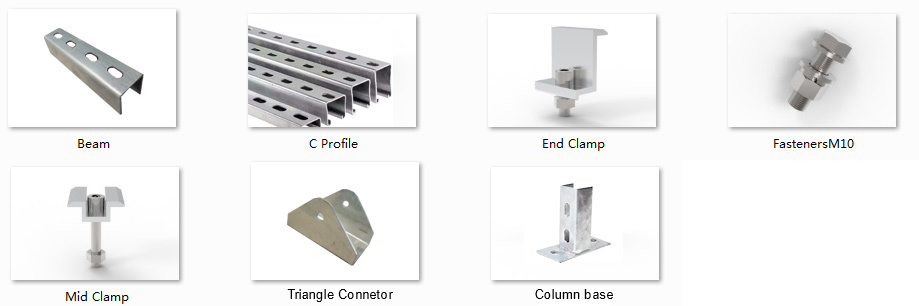

1、Purlin
2、Inclined beam
3、Triangle Connetor
4、front pillar
5、Column base
6、Rear pillar
7、End clamp

Technical Parameter

Install Site	Open Terrain
Tilt Angle	Depends
Max Snow Load	1.5KN/m²
Max Wind Speed	42m/s
Module Orientation	Landscape or Portrait
Foundation Type	Concrete Base or Screw Pile
Material	ZAM Steel/HDG
Warranty	12 years quality guaranty
Place of Origin	Shandong, China
Service Life	25 years
