C-type Steel Mount/Bracket

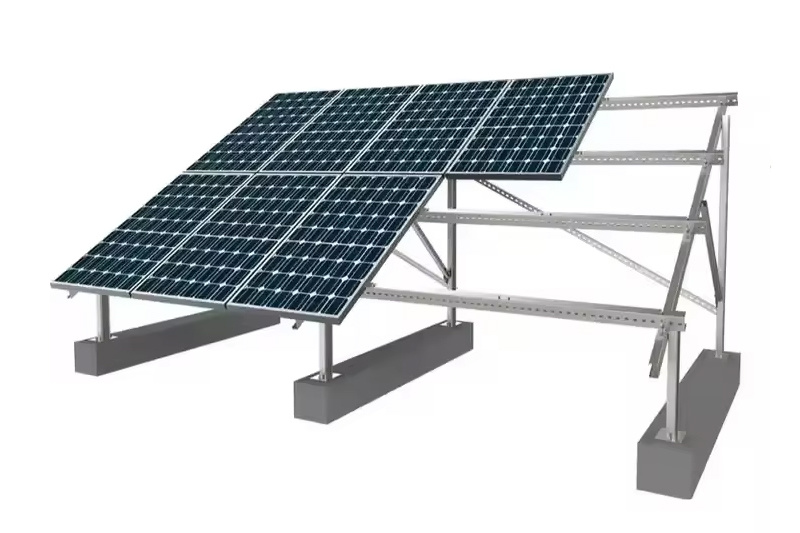

Solar ground mount system with two legs, the horizontal beams and longitudinal beams of the main support are all made of C-shaped steel, and the high-strength structure ensures the stability of the structure.

Email:

jirifang@eaststeelpipe.com

Phone:

+86-15762697301

Inquire Now

Download Catalog

Products Category

C-type Steel Mount

keyword：Ground Mount

Description

Product Description
The whole aluminum alloy design, the overall beautiful atmosphere. Material is light, card slot type keel design, simple installation, 15 nano anodized surface treatment ensures excellent corrosion resistance. The height of the bracket system can be adjusted to flexibly adapt to various complex terrains. The recovery rate of aluminum alloy support system is more than 80%, which greatly improves the power station maintenance rate.

Detail Display

Complete specifications

The product styles and specifications are diverse, and customers can customize according to their own needs.

Resistance to corrosion and high temperature

Selected from high-quality raw materials, it has good corrosion resistance, heat resistance, and low temperature resistance.

Stable quality structure

Capable of withstanding impact and dynamic loads, with a uniform internal structure and good seismic resistance.

Simple and convenient installation

Multiple units can be easily connected to meet the actual requirements of each site.

Application Cases

Technical Parameter

Place of Origin:	Shandong, China
Material:	ZAM Steel/HDG
Installation Site:	Rooftop
Wind Load:	40m/s
Snow Load:	1.4KN/m2
Panel Layout:	Portrait，Landscape
Material:	Aluminum/Zam Steel
Warranty:	10 years quality guaranty
Service Life：	25 years
